POURING - STRUCTURAL EPOXY RESIN - INJECTING - THIXOTROPIC EPOXY RESIN -

CONNECTING - RODS AND BARS -

FAST FIXING - THIXO RAPID RESIN - ANCHORING - PURE EPOXY RESIN -

FILLING - MOULDABLE EPOXY PUTTY - PRIMER/CONSOLIDATOR - SMOOTH FILLING - TIMBABUILD -

JOIST END REPAIR KITS - JOIST SPLICE KITS - TIMBER RESIN SPLICE KITS -

EXTENDED 3D CUTTER - EXTENDED STEEL CHISEL - CARTRIDGE TUBES -

EXTENSION NOZZLES - SKELETON GUNS - TIMBER TREATMENTS

CLICK BUTTONS BELOW TO ADD TO SHOPPING CART

or CALL US FOR PROJECT HELP ON

01626 331351

to speak to Andy, Angela, Marcelle, Hayley or Kathy

Structural Epoxy Resins - pour directly or into a 1 litre cartridge tube for injection - e.g. concrete or timber holes or cracks

A three part, (two liquids and a powder) thick pouring resin. The thickness can be modified by varying the amount of powder used. Mix using a mixing paddle in an electric drill. For filling holes and, in combination with reinforcement rods, for structural repair of timber and masonry, including concrete. Self levelling, self de-gassing.

Usage rate - by volume - 1 litre will fill a void 100mm x 100mm x 100mm (4" x 4" x 4").

What does it look like - smooth porridge or lava, grey or dark grey colour

Frequently purchased with this product - Mixing Paddle, 1 litre Cartridge Tube Kit, 1 litre Skeleton Gun.

£34.65 1 litre, £62.83 2.5 litre, £128.85 7.5 litre, plus VAT

Buy Structural Pouring Resin:

Buy 1 litre -

Buy 2.5 litres -

Buy 7.5 litres -

Buy Mixing Paddle -

Buy empty 1 litre Cartridge Tubes -

Buy Professional Quality Skeleton Gun 1 litre -

Buy 1 Litre Injection Accessory Kit:

Box of 100 vinyl gloves, 1000cc professional skeleton gun, mixing knife -

A two part, (two gels) thick injection, bonding and laminating resin. Mix using a pallet knife, by hand. For laminating and bonding materials together. In conjunction with a Cartridge Tube kit, for injecting into slots and holes and, in combination with reinforcement rods, for structural repair of timber and masonry, including concrete. Also used as an anchor resin, to bond rods, studs, bolts and reinforcement into masonry and concrete.

Usage rate - by volume - 1 litre will fill a void 100mm x 100mm x 100mm (4" x 4" x 4"). A 400cc pack will fill a hole 25mm in diameter to a depth of 800mm. Extension tubes are available, made to order, to reach the base of any hole depth and in varying diameters.

What does it look like - Swarfega or Vaseline, creamy grey colour.

Options - Standard Set or Slow Set versions (Slow Set gives up to 3 hours of open time)

Frequently purchased with this product - Pallet Knife, 400cc Cartridge Tube Kit, 400cc Skeleton Gun, 1 litre Cartridge Tube Kit, 1 litre Skeleton Gun, Vinyl Gloves (Box of 100).

£26.86 400cc, £35.89 1 litre, both require a Cartridge (at extra cost) if being used for injection, rather than spreading

Buy Thixotropic Resin - 400cc - 1 Litre -

Buy Slow Set Thixotropic Resin 400cc - 1 Litre -

Buy pallet knife - box of gloves -

Buy 400cc Injection Accessory Kit - box of gloves, 400cc skeleton gun, mixing knife -

Buy 1 Litre Injection Accessory Kit - box of gloves, 1000cc skeleton gun, mixing knife -

Buy Cartridges - with pistons, nozzles and loading plates - 400cc - 1000cc -

Buy Extension Nozzles - 16mm diameter - 400mm long - 400cc - 1000cc -

Buy Extension Nozzles - 10mm diameter - 400mm long - 400cc - 1000cc -

Epoxy/Glass Bars - cut from 1 metre lengths

Available in 6, 8, 10, 13, 16mm diameters - call 01626 331351 for prices and specification.

Zinc Plated High Tensile Steel Allthread - cut from 3 metre lengths

Available in 12, 16, 20, 25mm diameters - call 01626 331351 for prices and specification.

Helical Stainless Steel Bar

Available in 6mm diameter, 1 metre or 2 metre lengths. Each 1 metre length will make one typical brickwork or blockwork 'stitch'.

Helical Bar - £4.88 per metre, supplied in 1 metre lengths, plus VAT

Buy Helical Bars - 6mm x 1 metre -

Priced by Telephone to suit your project - supplied cut to length - call 01626 331351

Photographs

1. Example of High Tensile Zinc Plated Allthread, used to join components inside a repair.

2. Helical Stainless Bar, used mainly in 'stitching' of timbers and masonry.

Bars and Rods can be used as shear connectors, or to transmit load through a repair area into sound timber. They may act in compression and bend.

Ask for our Structural Engineering Service to obtain independent qualified advice regarding your repair, together with Insured (Indemnified) Calculations - from £300 plus VAT.

For rapid setting injection with the resins mixed in the nozzle - 6 to 8 minutes, in a single plastic cartridge. Simply insert into a standard skeleton gun and screw on the spiral mixing tube. Inject gently, like putting paste on your toothbrush, from the bottom of the hole outwards. Can be used for anchors, bolts, studs and stitching in masonry. Buy spare mixing tube nozzles to avoid wasting part tubes, if you need to stop and start.

Usage rate - 280cc will fill a 10mm x 100mm slot for a length of 280mm (a typical 'stitch' repair would be 225mm long).

What does it look like - toothpaste, light to mid grey colour.

Frequently purchased with this product - 400cc Professional Skeleton Gun, Spare Mixing Nozzles, Vinyl Gloves.

Thixo Rapid Resin 280cc - £15.76 per single tube with one mixing nozzle, £9.98 per tube in a box of 10, with one mixing nozzle, £0.65 per spare mixing nozzle, plus VAT

Buy 1 to 9 single tubes of Thixo Rapid 280cc -

Buy a Box of 10 tubes of Thixo Rapid 280cc -

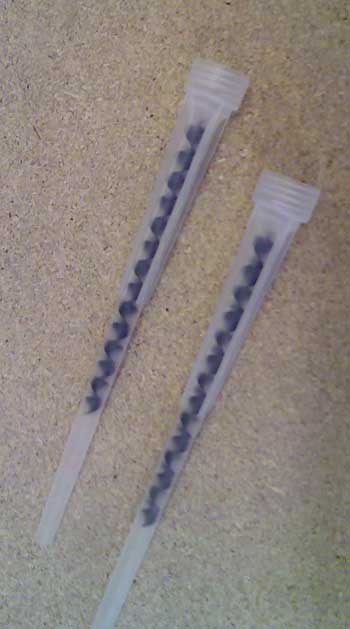

Buy Spare Mixing Nozzles -

Buy Box of 100 Disposable Vinyl Gloves -

Buy Stitching Epoxy-Glass Rod - 6mm diameter x 1 metre -

Buy a 280cc/400cc Injection Accessory Kit -

Includes a box of 100 gloves, 400cc skeleton gun, nozzle, mixing knife -

For repairs to metal, masonry and wood - Pure Epoxy Resin, supplied in a dual piston, side by side plastic cartridge. Simply insert into a 1:1 ratio skeleton gun and screw on the mixing tube. Inject from the bottom of the hole outwards or spread onto mating surfaces. Can be used for anchors, bolts, studs and stitching in masonry, bonding and laminating - suitable for use with steel, stainless steel, aluminium, brick, stone and render.

Usage rate - 380cc will fill 8 x 20mm diameter holes to a depth of 150mm, assuming maximum wastage. For surface bonding or lamination allow a minimum of 1 litre per square metre, assuming a thickness of 1mm.

What does it look like - toothpaste, red-brown colour.

Frequently purchased with these products - 1:1 Skeleton Gun, Vinyl Gloves, Spare Mixing Nozzles

Pure Epoxy Resin - £18.42 per 380cc cartridge including mixing nozzle, plus VAT

Pure Epoxy 380cc Resin -

Box of 100 gloves - Spare mixing nozzles -

Special Injection Gun - side by side 1:1 -

Simply take equal portions in gloved hands and mix together, like window putty or bread dough, until a perfectly even colour. Apply with a pallet knife or by hand placing. Can be sanded and painted, or left a natural buff colour. Can also be coloured with Mortar Powder or you can add you own stone dust to the finished surface whilst uncured.

Usage rate - 1 litre of putty will fill a hole 4 inches x 4 inches x 4 inches (100mm x 100mm x 100mm).

What does it look like - window putty or bread dough, buff colour.

Frequently purchased with this product - Vinyl Disposable Gloves (Box of 100 uni-handed vinyl), Epoxy Primer 500cc.

Buy Mouldable Epoxy Putty: 2 sizes

500cc, £12.62, plus VAT -

1 litre, £18.38, plus VAT -

Buy Pallet knife £9.52, plus VAT -

Buy Box of 100 gloves, £10.97, plus VAT -

Buy Epoxy Primer/Consolidator: 2 sizes

500cc, £18.20, plus VAT -

1000cc, £27.88, plus VAT -

Discounted Offer:

Complete Epoxy Putty Repair Kit, £34.98, plus VAT-

(Contains 1 x 1 litre of putty, box of gloves, putty knife).

Epoxy Primer is always specified for masonry, smooth timber, planed timber and all hardwoods.

However, on rough or well dug out softwood timber it is not strictly required.

Ensure that ALL rotted wood is cut out completely. Filling over rot is a waste of money.

Finish the job off with our Boron Paste and Boron Rods - these provide internal protection by dissolving inside. See our Boron Shop for details.

A thin, two part epoxy liquid. Primes and consolidates timber, concrete, brick stone and render.

Provides a secure bond on wood, metal, concrete, render, stone, brick and quarry tiles. Apply by brush or roller. Pure epoxy - no solvents, no water. Apply the repair resin (e.g. Mouldable Putty) into the repair while the Epoxy Primer is still tacky.

Usage rate - allow between 1 square metre per litre (rough surfaces) and 2.5 square metres per litre (smooth surfaces)

What does it look like - thin liquid, slight straw or pink tint

Colours - Clear - other colours to Order

Epoxy Primer/Consolidator - £18.20 for 500cc, £27.88 for 1 litre, plus VAT

Buy Primer/Consolidator - 500cc -

Buy Primer/Consolidator - 1 litre -

Buy pallet knife for mixing - - Buy box of 100 disposable gloves -

Repair window frames, door frames, timber frames with TIMBABUILD or TIMBABUILD RAPID. Designed for window frame care and repair, this filler/adhesive consists of two soft, creamy materials, gunned to give a perfect mix ratio. Mix with a putty knife. There is no shrinkage and it is totally waterproof. This is a professional repair material, as used by window frame repair specialists.

Usage rate - 380cc will fill a 10mm x 100mm slot for a length of 380mm

Frequently purchased with this product - 380cc Skeleton Gun, Spare Mixing Nozzles, Vinyl Gloves, Epoxy Primer.

Timbabuild Rapid Set - £27.87 per tube, plus VAT -

Timbabuild Standard Set - £26.98 per tube, plus VAT -

Timbabuild Skeleton Gun,

for Rapid or Standard Set - £28.90, plus VAT -

Epoxy Primer, 500cc - £18.20, plus VAT -

Box of 100 gloves - £10.97, plus VAT -

Epoxy Primer is always specified for smooth timber, planed timber and all hardwoods.

However, on rough or well dug out softwood timber it is not strictly required.

Ensure that ALL rotted wood is cut out completely. Filling over rot is a waste of money.

Finish the job off with our Boron Paste and Boron Rods - these provide internal protection by dissolving inside. See our Boron Shop for details.

Joist Repair - end plates and splice plates

Joist End Repair Plates (also known as Bower Beams) are supplied as pairs of galvanised steel plates, pre-drilled, to be fixed with Coach Screws (included). The plates rest in or on the wall and allow for the rotted end to be cut off.

For use in rows of continuous end repairs, with no sound joist ends between, always add a bolt and nut set, comprising two bolts, two nuts and two washers, 10mm diameter, through the plates into the parent joist, to give additional stiffness.

For use in splicing two joist pieces together always add two bolt and nut sets, comprising four bolts, four nuts and eight washers, 10mm diameter, through the plates into the parent joists, to give additional stiffness.

BM6 and BM9 - Only for joists 4 inches, 100mm, deep or larger,

BM6 Plates - allow for up to 6 inches, 150mm, to be cut off - joist size 4 inches, 100mm deep, or more

BM9 Plates - allow for up to 9 inches, 225mm, to be cut off - joist size 4 inches, 100mm deep, or more

BM17 - Only for joists 6 inches, 150mm, deep or larger,

BM17 Plates - allow for up to 17 inches, 432mm, to be cut off

Buy BM6 Kit - - £19.56 plus VAT

Buy BM9 Kit - - £24.51 plus VAT

Buy BM17 Kit - - £35.97 plus VAT

Buy Bolts Set - - £2.50 plus VAT (specify the timber thickness of the joists in the Delivery Information Box when in the Shopping Cart)

Note - For Joist End Repair Plates buy 1 Bolts Set per Kit.

Joist Splice Plate Kits are supplied as pairs of plates made from anodised aluminium treadplate, un-drilled, to be fixed with self drilling and tapping screws (included). The plates allow you to joint domestic joists at any point along their length.

For use in splicing two joist pieces together always add two bolt and nut sets, comprising four bolts, four nuts and eight washers, 10mm diameter, through the plates into the parent joists, to give additional stiffness.

JSP No. 1 Small Kit - for joists from 4 inches up to 6 inches, 100mm - 150mm, in depth

JSP No. 2 Medium Kit - for joists from 6 inches to 8 inches, 150mm - 200mm, in depth

JSP No. 3 Large Kit - for joists from 8 inches up to 10 inches, 200mm to 250mm, in depth

JSP No. 4 Special Kit - for joists from 6 inches up to 8 inches, 150mm - 200mm, in depth, extra plate length version (1000mm) for sequential repairs requiring more support.

Buy JSP Small Kit - - £19.48 plus VAT

Buy JSP Medium Kit - - £23.80 plus VAT

Buy JSP Large Kit - - £32.68 plus VAT

Buy JSP Special Kit - - £32.68 plus VAT

Buy Bolts Set - - £2.50 plus VAT (specify the timber thickness of the joists in the Delivery Information Box when in the Shopping Cart)

Note - For Splice Plates buy 2 Bolts Sets per Kit.

Timber-Resin Splice Kit - beam end repair - bearing ends or mid-span sections

For repairing timber beams, lintols, rafters, tie beams, carrier beams, joists and bressumers. These bespoke beam kits contain a new, laminated structural timber, made in kiln dried wood to C24 Grade or higher, fitted with connector bars made from zinc plated 8.8 Grade High Tensile Allthread bar. Pouring or injection resins are also included.

Engineering - free Design, Method Statement and Tools List (Hire available).

Frequently purchased with this product - additional Structural Pouring Resin

£ POA - price on application, Immediate Free Quotation - call Angela or Andy on 01626 331351

We also manufacture unusual shaped timber repair components: for example, on the left

we have a Pizza Hut building with new frame legs, on the right a timber Tower part.

Strength Upgrades - reduce deflection - sagging beams, change of use: domestic to commercial

For stiffening timber beams, lintols, rafters, tie beams, carrier beams, joists and bressumers. Steel reinforcement, made from zinc plated 8.8 Grade High Tensile Allthread bar, or BS4449 Rebar is laid into a central slot and then Structural Epoxy Pouring resin is added to form a permanent upgrade. This 'modified flitch' usually doubles the stiffness of the average beam.

Engineering - free Design, Method Statement and Tools List (Hire available).

Frequently purchased with this product - additional Structural Pouring Resin

£ POA - price on application, Free Quotation - call Angela or Andy on 01626 331351

3D Cutters - deep hole and slot cutting

A high speed tool for use in electric drilling machines. The 3D Cutter drills holes, cuts slots and can be dragged sideways to clean out previously rough drilled or cut out slots or holes.

25mm diameter x 110mm length - - £24.40 plus VAT

32mm diameter x 110mm length - - £25.83 plus VAT

Extended length versions:

25mm diameter x 250mm length - - £38.50 plus VAT

32mm diameter x 250mm length - - £39.77 plus VAT

All Metal Chisels - deep slot clearance

All Metal Chisels, made of solid steel, can be used with lump hammers and as levers, to clean out slots and tidy up previously roughly cut out cavities in wood.

Standard length;

Buy Chisel 30mm wide - - £19.87 plus VAT

Extended length

Buy Extended Chisel 30mm wide - - £39.87 plus VAT

Cartridge Tubes - for hand filling

400cc Cartridges and extension tubes:

400cc Cartridge Tube Kit, with piston and standard nozzle - £1.95 plus VAT

400cc Extended Nozzles - 8mm - £2.85, 10mm - £3.20 plus VAT

Buy 400cc Cartridge Tube Kit -

Buy Extended Nozzle Tube - 8mm diameter x 400mm long -

Buy Extended Nozzle Tube - 10mm diameter x 400mm long -

Buy Extended Nozzle Tube - 15mm diameter x 400mm long -

1 Litre cc Cartridge Kits and extension tubes:

1 Litre Cartridge Tube Kit, with piston and standard nozzle - £4.25 plus VAT

1 Litre Extended Nozzles - 10mm - £3.60 16mm - £4.10 all plus VAT

Buy 1 Litre Cartridge Kit -

Buy Extended Nozzle Tube - 10mm diameter x 400mm long -

Buy Extended Nozzle Tube - 15mm diameter x 400mm long -

Extension Nozzles - for cartridge tubes - 400cc or 1 Litre fitting

Buy Extension Nozzles:

8mm diameter - 400mm long - for 400cc Tube -

10mm diameter - 400mm long - for 400cc Tube -

10mm diameter - 400mm long - for 1 Litre Tube -

15mm diameter - 400mm long - for 400cc Tube -

15mm diameter - 400mm long - for 1 Litre Tube -

Skeleton Guns - for single and double tubes

400cc Skeleton Gun - for injection using UltraCure 400cc and all other products in single tubes, 280cc to 400cc

1 Litre Skeleton Gun - Special 1000cc gun for injection using UltraCure 1000cc or other 1 Litre products.

380cc 1:1 Skeleton Gun - gun for injecting Anchor Resin and similar 1:1 side by side resin cartridges

£16.50 400cc gun, £26.98 1000cc (1 litre) gun, £28.90 380cc/1:1 mix ratio, plus VAT

Buy 400cc skeleton gun -

Buy 1000cc skeleton gun -

Buy 380cc/1:1 ratio gun -

Buy pallet knife -

Buy box of 100 gloves -

Timber Treatments - no smell, no vapour, no solvents

To Buy Timber Treatments - click here to go to the Boron Shop

Always carry out preservative treatment after you have removed the source of moisture and carried out the repair.

1. Surfaces - brush or spray - Boron Ultra 12 in water

2. End Grain and cuts - by brush - Boron Eco or Ultra Gel

3. Bearing ends - by injection via drilled holes - Boron Eco or Ultra Paste

Boron Ultra Paste being injected

To Buy Timber Treatments - click here to go to the Boron Shop

Looking for a solution to a problem:

• Joist end repair - use Joist End Repair Kits
• Joist span repairs - use Joist Splice Plates
• Beam Cracks and Splits - use Mouldable Epoxy Putty
• Injection of Slots or Cracks - use Thixotropic Injection Resin or Pure Epoxy
• Injection of Stitching Slots or Anchor Holes - use Thixo Rapid
• Filling holes or cavities by pouring - use Structural Epoxy pouring Resin
• Timber Beam end failure - use a Timber-Resin Splice kit

Free Technical Advice on all these subjects: call Angela, Andy or David on 01626 331351

Property Repair Systems, Olympus Business Park, Kingsteignton Road, Newton Abbot, Devon, TQ12 2SN

T: 01626 331351 F: 01626 331143

E: help@propertyrepairsystems.co.uk

Home | Repairs | Beams | Roof | Mold | Dry Rot | Privacy Policy | Returns Policy | Contact
