Under strength beams - strengthen structural wooden beams

Property Repair Systems is OPEN FOR BUSINESS - 01626 872886











Types of wooden beam weakness that can be repaired



1. Bending/deflection - caused by overloading, undersized timber section, poor quality timber, insect or rot damage

2. Change of Use - from domestic to commercial, added loading such as: storage, filing, piano, Museum

3. New Build - need for lowest height of timber to preserve headroom, loft conversion, ring beams, ridge boards, joists

4. Breakage - partial or complete failure

Insect attack - broken Rafter

Total failure due to severe insect attack

Go Direct to Timber Repair Shop




Example



Timber Beams that have partly broken or been eaten by Rot or Wood Boring Insects can be repaired using High Tensile Steel Bars, Zinc Plated Allthread, or Epoxy-Glass Bars or Stainless Steel Bars. The bars are then embedded in Structural Epoxy Pouring Resin or Grout.

High Tensile Allthread inside a hollowed out beamShear Connectors in Slots

New timber component in place - note bars in slots

Independent Engineering calculation service available, £350 per beam, Indemnified (Insured)

Go Direct to Timber Repair Shop




How to increase strength



Upgrade the Beam or Joist - cut a slot, or slots, along the length to within about 40mm of the base and bond in BS4449 High Tensile Rebar with Structural Epoxy Pouring Grout. This is know as a 'modified flitch' design and approximately doubles the stiffness of a typical timber, in bend.

Excessive bend in a barn tie beamSlot cut into the top of the Tie Beam to hold rebar

Me pointing to the slot with the first rebars dropped in on spacersThe finished upgrade - Structural Epoxy Pouring Resin covering all the rebar

Barn, Somerset - overloaded tie beams in a barn now carrying heavy clay tiles on the roof (had been a thatched roof and then was converted to a lightweight galvanised sheet roof).

Go Direct to Timber Repair Shop




Example





Loft Conversion, Newton Abbot - maximum ridge board to be 12" x 4" (300mm x 100mm), not strong enough to meet Engineers specification.

For more Technical Information and a Photo Gallery go to:www.timber.org.uk

Farmhouse floor joists on carrier beamsCarrier Beam slotted to take re-bar to increase bending stiffnessUpgraded Floor Beam

Beam upgrade with re-connection of joists

Go Direct to Timber Repair Shop




How to extend ends that have rotted



Cut out the decay and either:

1. Cut off the end completely and fit a Timber-Resin Splice, priced and manufactured to fit the exact size and timber type.

2. Build a box around the missing part, fit Rebars to extend into the sound part and fill with Structural Epoxy Pouring Grout.

Timber Resin Splice top slot fixing methodTimber Resin Splice top slotted and then resin filled

Theory and Practice - Timber-Resin Splice top slot (Type C) joist end repair in place

Go Direct to Timber Repair Shop




Example



Bindon House Hotel, Somerset - truss ends and tie beams, Dry and Wet Rot. The ends were replaced using TYPE E Timber-Resin Splice units, made to measure .

Beam End Repair - ClerkenwellTimber Resin Splice - dry fitted ready for resin pouringSteel bars and anchors ready for resin pouring

Timber-Resin Splices and bars in place.

For more Technical Information and a Photo Gallery go to:www.timber.org.uk

Go Direct to Timber Repair Shop




How to prevent Timber rot damage



1. Protect structures from penetrating and rising dampness

2. Apply breathable protective coatings to external timbers - UltraProof or Deepseal coatings

3. Treat vulnerable timbers with Boron Products - Boron Rods, Boron Paste, Boron Gel and Ultra 12 powder in water, by spray or brush for indoor use, to floor and roof timbers.

Boron Paste & Rods in JoistsBoron Paste & Rods in Window Frames and Cills

Drilling patterns for window cill preservation with Boron



Go Direct to Timber Repair Shop




Examples



Ships - The Unicorn, Dundee, Wet and Dry rot

Castles - Dartmouth Castle, Taymouth Castle

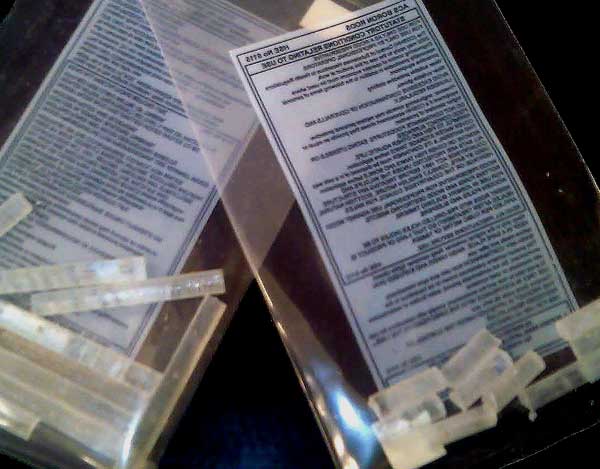

Boron Rods in packets of 10 for inserting into damp timber.Drilling an electricity Pole ready for insertion of Boron rods and boron paste.

Boron Rods in packets of 10. Drilling a Pole for preservation.



Houses - The Log House, Bindon House

Pre-Treatment - 'Timborising', extensively used in New Zealand and Canada, where 'green' (freshly felled) timbers are soaked in Borax before, drying and cutting to size

Go Direct to Timber Repair Shop
